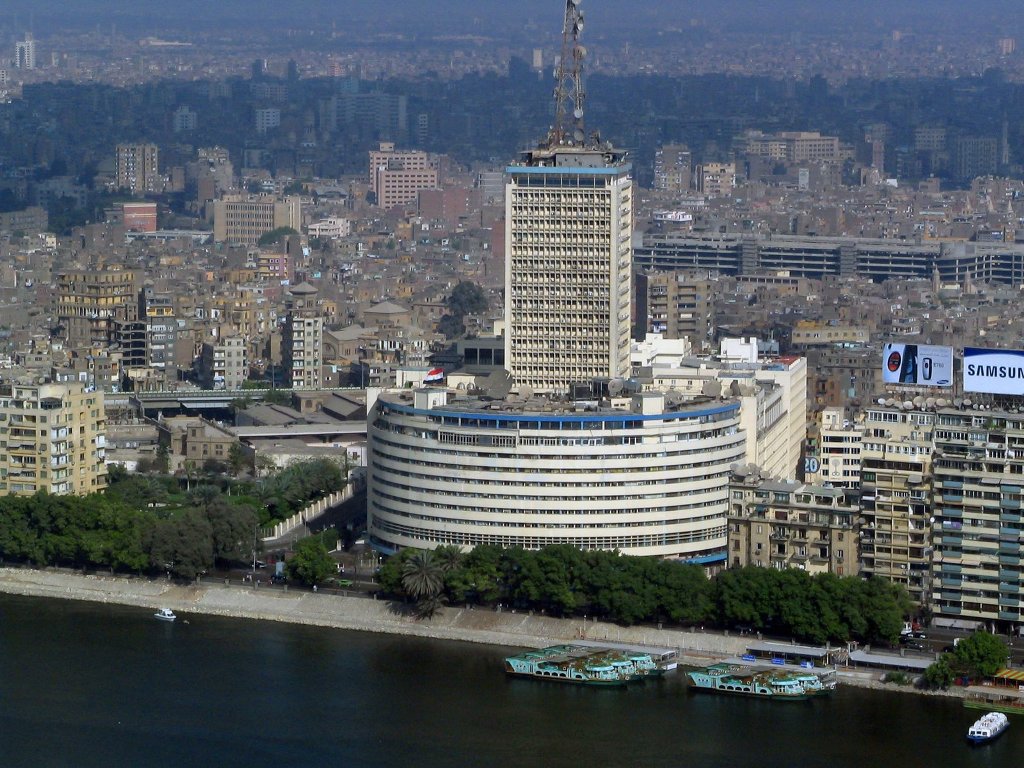

Television Building [Extension]

Work Includes shop drawings of the electrical and low current systems installations.

A total of 222 no. of sheets have been produced and approved for this project.

– The Electrical Systems Include:

  • Electrical substation contains six dray type transformers each of 2 MVA.
  • 11 KV distribution voltage regulator.
  • Two diesel generators set each of 1275 KVA.
  • Two UPS units each of 500 KVA.
  • One UPS unit 330 KVA.
  • Busbar trunking system.
  • Lightning protection system.
  • Central emergency lighting system.
  • Helipad lighting system.
  • Earthing system.

Р Low Current Systems Include:

  • Telephone Network with MDF 4000 pairs.
  • Fire Detection & Alarm System contain main panel, five satellite control panels & (4200 detectors).
  • Satellite and Master Antenna T.V System (about 135 TV outlets).
  • Public Address System for Background Music and Paging Calls in Public Area contain
  • Eleven 400 W power amplifier (1590 speakers).
  • Computer Networks.
  • Closed circuit television (CCTV) contains number 2 secondary stations (200 cameras).
  • Clock and display system (312 clocks).
  • Nurse calls system.
  • Intercom system.
  • Discussion and conference system.
Sector EgyptBuildings & Commercial Sector
Location Cairo, Egypt
Owner Union of Radio & Television
Architect Architecture center group (Dr. Hammam Serag el din )
Main Consultant Shaker consultancy group
Description 25 storey building contains (kitchen, restaurant, hospital, theaters & studios)
